Products

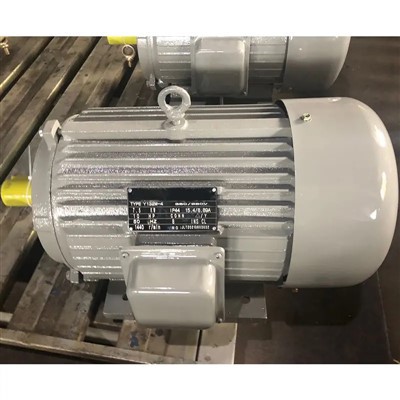

Ac Three-phase Induction Motor
Frequency:50/60Hz
Phase:Three-phase
Protect Feature:Totally Enclosed
AC Voltage:380V
Features
Essential details
| Warranty:3months-1year Place of Origin:Zhejiang, China Brand Name:Julante Model Number:Y2 Type:Induction Motor Frequency:50/60Hz Phase:Three-phase Protect Feature:Totally Enclosed AC Voltage:380V Efficiency:IE 2 |
Cooling type:IC0141 Protection class:IP54/IP55 Apply machines and equipments:drilling machines ,blowers , pumps and so on Duty:S1 Brand:Julante and OEM Color:blue /yellow/red/customize Altitude:not exceeding 1000m Ambitent temperature:-15℃≤0≤40℃ Insulation class:B/F Certification:CCC CE |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Carton or plywood cases
Lead time:
| Quantity(pieces) | 1 - 30 | >30 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
Three Phase Motor 3 Phase Ac Induction Motor is made of high quality cast iron.With optimized construction design,they can ensure the requirement
of structure rigidity and intensity.Silicon steel plate is used in stator core and rotor core,it has good insulation on surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing intensity,F class insulation makes the motor with higher heat stability and longer life.
FEATURES AT A GLANCE
We use die-casting technology to ensure the stable quality of the rotor and aesthetic appearance.
The design of bearing and motor construction focuses on motor type,force on the motor,speed,lubricate type,including bearing,design of oil sea and lubricant etc.It has the advantage of credible performance and easy maintenance.For the frame size from 250 and below,we generally use closed bearing;frame size above 250 we use open type.Bearing.Regreasing can be done during running.Perfect primer ensures the motors with good apperance and the motors are durable.We can also use special corrosion protection coating.
Right elevation
Left elevation

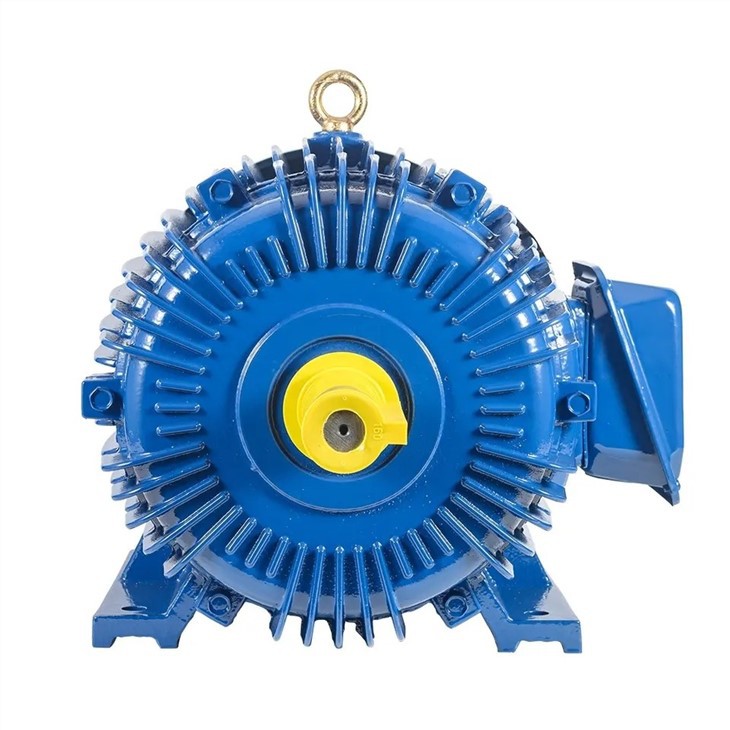

Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.18KW-560KW
|
|
3
|
Voltage
|
220/380/440/660V
|
|
4
|
Speed
|
750-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Three Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
Y/Y2/YE3/YR/YZ
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
What are the application fields of motor product？
1. Machinery manufacturing: including all kinds of industrial machinery and tools, automatic production lines, conveying devices, etc.
2. Automobile industry: including automobile control system, electric vehicle drive system, etc.
3. Household appliances: including all kinds of power tools, kitchen appliances, washing machines, etc.
4. Information technology: including computers, tablets, mobile phones and other mobile devices.
5. Agricultural machinery: including agricultural machinery, agricultural vehicles and spraying equipment.
6. Medical equipment: including medical suction device, acupuncture instrument, medical electric bed, etc.
7. Aerospace: including aircraft, helicopters, satellites and other aerospace devices.
8. Electronic equipment: including sensors, televisions, printers and other electronic equipment.
9. Environmental protection equipment: including environmental protection equipment, purification system, electric extraction fan, etc.
10. New energy field: including wind turbines, solar panels, etc.
