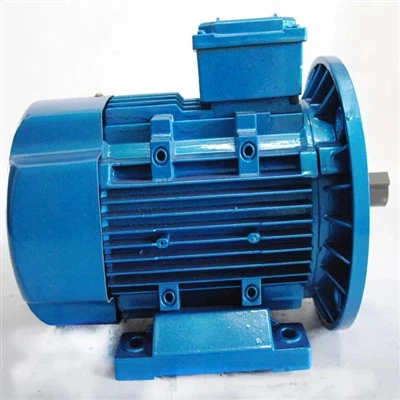

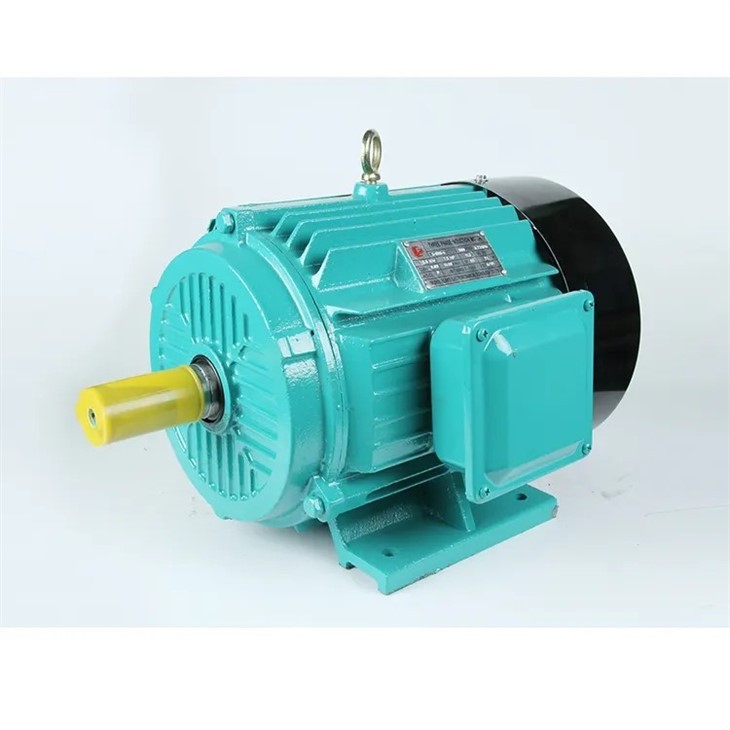

Electric Motor 3 Phase
Duty:S1
Brand:Julante and OEM
Color:blue /yellow/red/customize
Altitude:not exceeding 1000m
Features
Essential details
| Warranty:3months-1year Certification:CCC CE ISO9001, CCC Place of Origin:Zhejiang, China Brand Name:JULANTE Model Number:IE2 IE3 IE4 Cooling type:IC0141 Protection class:IP54/IP55 |
Apply machines and equipments:drilling machines ,blowers , pumps and so on Duty:S1 Brand:Julante and OEM Color:blue /yellow/red/customize Altitude:not exceeding 1000m Ambitent temperature:-15℃≤0≤40℃ Insulation class:B/F |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Carton or plywood cases
Port:ningbo shanghai guangzhou yiwu
Lead time:
| Quantity(pieces) | 1 - 30 | >30 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
Three Phase Motor 3 Phase Ac Induction Motor is made of high quality cast iron.With optimized construction design,they can ensure the requirement
of structure rigidity and intensity.Silicon steel plate is used in stator core and rotor core,it has good insulation on surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing intensity,F class insulation makes the motor with higher heat stability and longer life.
FEATURES AT A GLANCE
We use die-casting technology to ensure the stable quality of the rotor and aesthetic appearance.
The design of bearing and motor construction focuses on motor type,force on the motor,speed,lubricate type,including bearing,design of oil sea and lubricant etc.It has the advantage of credible performance and easy maintenance.For the frame size from 250 and below,we generally use closed bearing;frame size above 250 we use open type.Bearing.Regreasing can be done during running.Perfect primer ensures the motors with good apperance and the motors are durable.We can also use special corrosion protection coating.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.18KW-560KW
|
|
3
|
Voltage
|
220/380/440/660V
|
|
4
|
Speed
|
750-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Three Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
Y/Y2/YE3/YR/YZ
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
How to solve the heat dissipation problem of motor products?
1. What is the heat dissipation problem of the motor?
The motor will generate heat during operation, and if it cannot dissipate heat in time, it will cause the motor to overheat and malfunction, which will affect the life and performance of the motor.
2. What are the ways of motor heat dissipation?
The main ways of motor heat dissipation are natural air cooling, forced air cooling, liquid cooling, heat pipe cooling, heat sinking and so on.
3. How to do natural air cooling?
Natural air cooling is to use the motor's own heat sink to dissipate heat, using the natural wind of the environment to dissipate heat. In the motor structure to increase the area of the heat sink, reduce wind resistance and other measures can improve the natural cooling capacity.
4. What is forced air cooling?
Forced air cooling is to increase the air flow and speed of motor cooling by adding fans and other devices to achieve the purpose of improving the cooling effect.
5. What are the advantages and disadvantages of liquid cooling?
Liquid cooling can effectively improve the cooling effect of the motor, but requires the installation of radiators, pumps and other equipment, the cost is higher, and maintenance is more complex.
6. What is heat pipe cooling?
Heat pipe heat dissipation uses heat pipes to dissipate heat from the motor, the advantages of which are simple structure, small size and good heat dissipation, but the price is relatively high.
7. How is heat sink cooling done?
Heat sink heat dissipation is done by putting the heat sink in direct contact with the motor and using the high thermal conductivity of the heat sink material to quickly transfer heat from the motor to the heat sink, thus achieving the purpose of heat dissipation.
8. How do I choose the right heat sink for my motor?
Choosing the right heat sink for a motor requires a comprehensive evaluation and comparison based on the motor's operating environment, working mode, heat dissipation requirements, and other factors such as cost and service life. It is best to ask a motor professional for evaluation and consultation.
ABOUT US
Taizhou Julante Electromechanical Technology Co.,LTD is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of three phase ac electric motor ,single phase ac electric motor ,internal concrete vibrator , external concrete vibrator ,air compressor ,water pump motor , Cutting machine, welding machine, grinder,ect .
