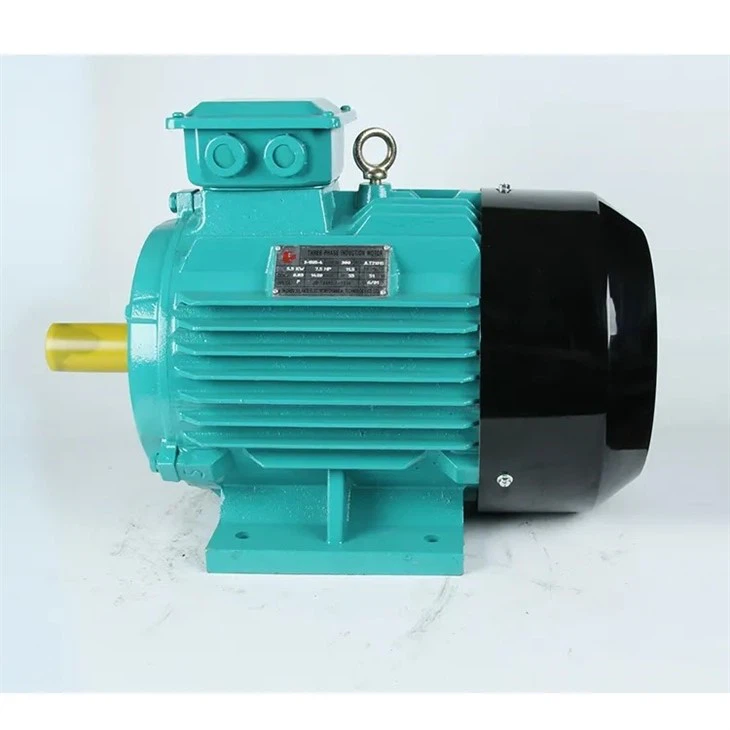

Asynchronous Electric Ac Motor
Brand Name:JULANTE
Model Number:Y Y2 YE2 Y3 YE3
Cooling type:IC0141
Protection class:IP54/IP55
Features
Essential details
| Warranty:3months-1year Certification:CE, CCC CE ISO9001 Place of Origin:Zhejiang, China Brand Name:JULANTE Model Number:Y Y2 YE2 Y3 YE3 Cooling type:IC0141 Protection class:IP54/IP55 |
Apply machines and equipments:drilling machines ,blowers , pumps and so on Duty:S1 Brand:Julante and OEM Color:blue /yellow/red/customize Altitude:not exceeding 1000m Ambitent temperature:-15℃≤0≤40℃ |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Carton or plywood cases
Port:ningbo shanghai guangzhou yiwu
Lead time:
| Quantity(pieces) | 1 - 30 | >30 |
| Lead time (days) | 15 | To be negotiated |
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.18KW-560KW
|
|
3
|
Voltage
|
220/380/440/660V
|
|
4
|
Speed
|
750-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Three Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
Y/Y2/YE3/YR/YZ
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
What are the insulation levels of motor products?
The following are common FAQ's about the insulation class of motor products:
1. What is insulation grade?
The insulation grade refers to the voltage resistance of the insulation material of the motor product. The insulation grade is divided according to the voltage resistance value, which is usually indicated by letters.
2. What are the common insulation grades?
The common insulation grades are A, B, E, F, H, N, etc.. Among them, A is the lowest grade and H is the highest grade.
3. Is the higher the insulation grade the better?
The higher the insulation grade, the stronger the voltage resistance, and the better the safety performance of the motor products. However, the higher the insulation grade, the higher the cost of materials, so you need to choose according to your specific needs.
4. How to judge the insulation level of motor products?
The insulation grade of motor products can usually be found in the product logo, technical specifications and other information. In addition, the insulation grade can also be determined by measuring the voltage resistance of the insulation material.
5. What is the relationship between the insulation level and the rated power of the motor product?
There is no direct relationship between the insulation level and the rated power of the motor product, but when selecting a motor product, you need to select the appropriate insulation level based on the rated power, operating environment and other factors.
What is a soft starter for an electric motor?
A soft starter for electric motors is an electrical device that is used to start and control the motor process, which can gradually increase the voltage and current of the motor to achieve slow start and stop, avoiding the inrush current when the motor starts and the reverse current when it stops from damaging the motor, and also reducing the fluctuation of the grid voltage and improving the stability of the grid. Soft starters generally have current limit, voltage control, time control and other functions, which can be configured and adjusted according to different application scenarios. Common soft starters include capacitor type, resistance type and electronic type.
