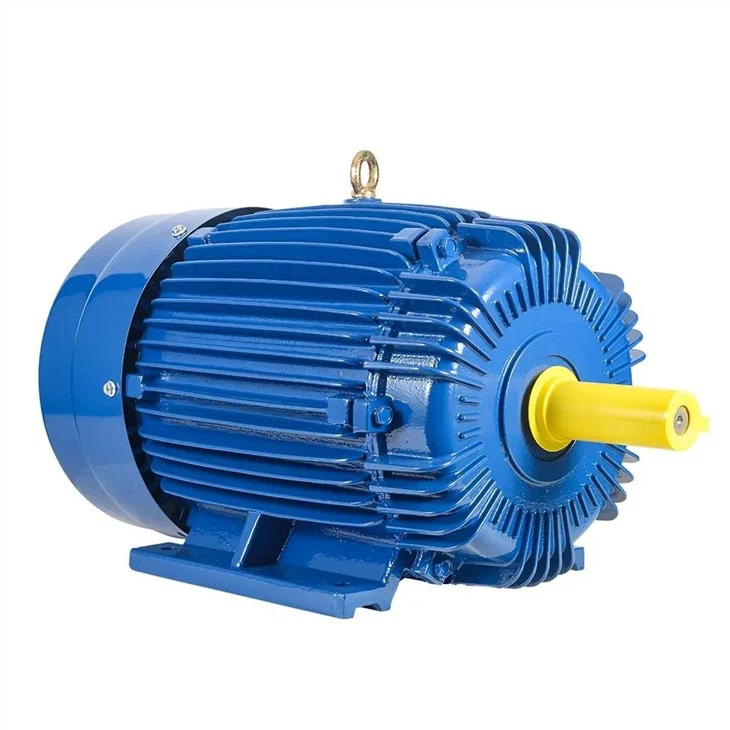

YE2 3 Phase AC Electric Induction Motor
Warranty:3months-1year
Place of Origin:Zhejiang, China
Brand Name:Julante
Model Number:Y2
Features
Essential details
| Warranty:3months-1year Place of Origin:Zhejiang, China Brand Name:Julante Model Number:Y2 Type:Induction Motor Frequency:50/60Hz Phase:Three-phase Protect Feature:Totally Enclosed AC Voltage:380V Efficiency:IE 2 |
Cooling type:IC0141 Protection class:IP54/IP55 |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Carton or plywood cases
Lead time:
| Quantity(pieces) | 1 - 30 | >30 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
Three Phase Motor 3 Phase Ac Induction Motor is made of high quality cast iron.With optimized construction design,they can ensure the requirement
of structure rigidity and intensity.Silicon steel plate is used in stator core and rotor core,it has good insulation on surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing intensity,F class insulation makes the motor with higher heat stability and longer life.
FEATURES AT A GLANCE
We use die-casting technology to ensure the stable quality of the rotor and aesthetic appearance.
The design of bearing and motor construction focuses on motor type,force on the motor,speed,lubricate type,including bearing,design of oil sea and lubricant etc.It has the advantage of credible performance and easy maintenance.For the frame size from 250 and below,we generally use closed bearing;frame size above 250 we use open type.Bearing.Regreasing can be done during running.Perfect primer ensures the motors with good apperance and the motors are durable.We can also use special corrosion protection coating.
Right elevation
Left elevation

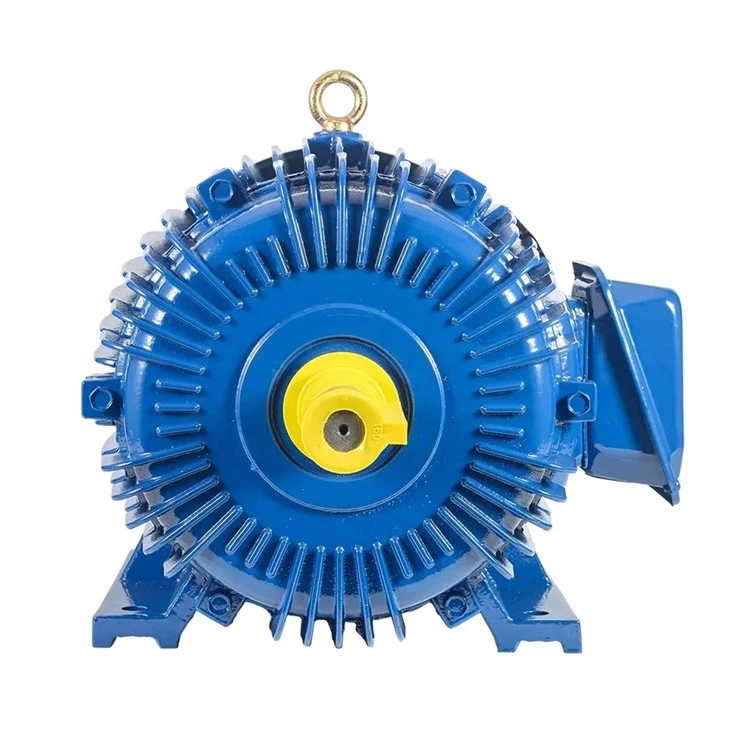

Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.18KW-560KW
|
|
3
|
Voltage
|
220/380/440/660V
|
|
4
|
Speed
|
750-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Three Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
Y/Y2/YE3/YR/YZ
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
1. What is an induction motor?
An induction motor is an AC motor that relies on electromagnetic induction to rotate. It works by inducing a magnetic field in the rotor, causing it to rotate in the opposite direction of the rotating magnetic field generated by the stator.
2. What is the difference between a single-phase and three-phase induction motor?
A single-phase induction motor operates on a single AC voltage, and relies on a starting mechanism to rotate. A three-phase induction motor relies on three-phase AC power, and typically does not require a starting mechanism.
3. What is an AC motor?
An AC motor is a type of electric motor that runs on alternating current (AC) power. It is commonly used in applications such as industrial machinery, HVAC systems, and home appliances.
4. How does an induction motor start?
An induction motor typically starts by using a starting mechanism, such as a capacitor-start or split-phase mechanism, to create a rotating magnetic field in the stator. Once the rotor begins to rotate, the starting mechanism is disengaged and the motor continues to run on its own.
5. How efficient are induction motors?
Induction motors are highly efficient, with typical efficiency ratings of 85-95%. The exact efficiency rating will depend on a variety of factors, such as the motor's size, design, and operating conditions.
6. What are the advantages of induction motors?
Induction motors have several advantages over other types of motors, including high efficiency, low operating costs, and simple construction. They are also reliable, durable, and easy to maintain.
7. What are the disadvantages of induction motors?
The main disadvantage of induction motors is that they require an AC power source to operate. They can also be less efficient at low speeds, and may not be suitable for applications that require precise speed control.
8. What are some common applications for induction motors?
Induction motors are used in a wide range of applications, including industrial machinery, HVAC systems, home appliances, and automotive systems. They are particularly well-suited for applications that require high reliability and low maintenance costs.
How is the life expectancy of an electric motor product calculated?
The life expectancy of electric motor products can be calculated by the following factors:
1. Working environment: the life expectancy of electric motor products varies in different working environments, such as temperature, humidity, vibration, corrosion and other factors will affect its life expectancy.
2. Frequency of use: the higher the frequency of motor products, the shorter the life expectancy.
3. Load size: motor products are easy to wear out under heavy load, which affects its life.
4. Material quality: the different quality of materials used in electric motor products will also have an effect on their life.
Based on the above points, the expected life of electric motor products can be predicted by experiment, experience, model calculation and other methods. Meanwhile, regular inspection, care and maintenance can also extend the service life of electric motor products.
