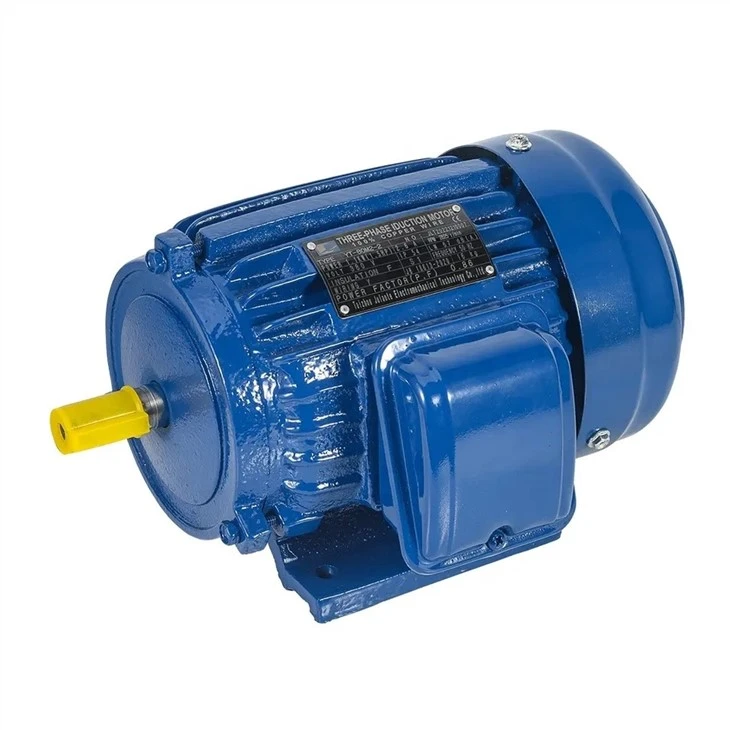

Three Phase Ac Electric Induction Motor
Warranty:3months-1year
Place of Origin:Zhejiang, China
Brand Name:Julante
Model Number:Y2
Features
Essential details
| Warranty:3months-1year Place of Origin:Zhejiang, China Brand Name:Julante Model Number:Y2 Type:Induction Motor Frequency:50/60Hz Phase:Three-phase Protect Feature:Totally Enclosed AC Voltage:380V Efficiency:IE 2 |
Cooling type:IC0141 Protection class:IP54/IP55 Apply machines and equipments:drilling machines ,blowers , pumps and so on Duty:S1 Brand:Julante and OEM Color:blue /yellow/red/customize Altitude:not exceeding 1000m Ambitent temperature:-15℃≤0≤40℃ Insulation class:B/F Certification:CCC CE |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Carton or plywood cases
Lead time:
| Quantity(pieces) | 1 - 30 | >30 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
Three Phase Motor 3 Phase Ac Induction Motor is made of high quality cast iron.With optimized construction design,they can ensure the requirement
of structure rigidity and intensity.Silicon steel plate is used in stator core and rotor core,it has good insulation on surface,low loss which ensures the higher efficiency.High quality insulation material combines the perfect insulation system which makes the insulation completely without clearance,high rigidity of the winding end,it can endure switching and reversing intensity,F class insulation makes the motor with higher heat stability and longer life.
FEATURES AT A GLANCE
We use die-casting technology to ensure the stable quality of the rotor and aesthetic appearance.
The design of bearing and motor construction focuses on motor type,force on the motor,speed,lubricate type,including bearing,design of oil sea and lubricant etc.It has the advantage of credible performance and easy maintenance.For the frame size from 250 and below,we generally use closed bearing;frame size above 250 we use open type.Bearing.Regreasing can be done during running.Perfect primer ensures the motors with good apperance and the motors are durable.We can also use special corrosion protection coating.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.18KW-560KW
|
|
3
|
Voltage
|
220/380/440/660V
|
|
4
|
Speed
|
750-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Three Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
Y/Y2/YE3/YR/YZ
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
1. What is an Electric Motor?
An electric motor is a device that converts electrical energy into mechanical energy. It consists of a rotor, stator, and various parts such as bearings, coils, and magnets.
2. How does an Electric Motor work?
When electric current is passed through the stator, it produces a magnetic field which interacts with the magnetic field of the rotor. This interaction causes the rotor, which is attached to a shaft, to rotate, thereby converting electrical energy into mechanical energy.
3. What are the different types of Electric Motors?
There are many types of electric motors, including AC motors, DC motors, synchronous motors, asynchronous motors, brushless motors, and stepper motors.
4. What are the advantages of Electric Motors?
Electric motors are efficient, reliable, quiet, and easy to control. They emit no emissions, making them environmentally friendly, and they require less maintenance compared to their combustion engine counterparts.
5. What are the applications of Electric Motors?
Electric motors are used in a wide range of applications, including industrial machinery, household appliances, electric cars, trains, and aircraft.
How is the reliability of electric motor products evaluated?
1. What is the reliability of electric motor products?
Reliability of electric motor products refers to its ability to operate stably and perform its designed functions under the specified conditions of use. It usually includes the indicators of product life, reliability, availability and maintainability. 2.
2. How to evaluate the reliability of electric motor products?
Reliability assessment of electric motor products generally includes the following steps: determining evaluation index, collecting data, constructing models, analyzing data, and formulating improvement measures. For the reliability assessment of electric motor products, we usually need to consider the long-term stability, quality, performance and other factors. The reliability of the product can be evaluated by experiment, test, statistical analysis, simulation, etc. 3.
How to improve the reliability of electric motor products?
To improve the reliability of electric motor products, we need to start from many aspects, including design, production, installation and maintenance. Usually, we need to ensure that the product design conforms to the standard, use high quality raw materials, strictly control the manufacturing process, ensure the installation quality, and strengthen the maintenance to improve the reliability of the product.
4. What is the impact of the reliability of electric motor products on users?
The reliability of electric motor products directly affects the safety and productivity of users. If there are reliability problems, there will be downtime and failure, which will lead to interruption of production and affect the normal production schedule and bring economic loss to the enterprise. At the same time, the reliability of electric motor products may also affect the safety of users.
How to analyze the failure of electric motor products?
To analyze the failure of electric motor products, firstly, we need to understand the cause of the failure, and then determine the specific failure point and solution with the actual situation. We can collect the relevant data through observation, test, inspection and calculation, determine the problem according to the distribution pattern of the fault, and then take corresponding repair or improvement measures.
