Products

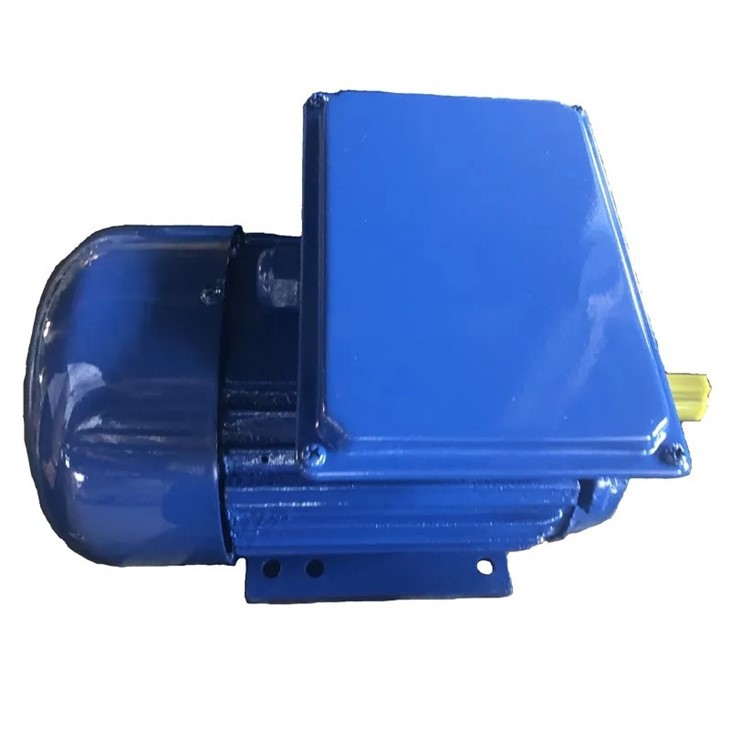

Ac Electrical Motor
Model Number:YE2
Type:Induction Motor
Frequency:50HZ
Phase:Three-phase
Features
Essential details
| Warranty:3months-1year Place of Origin:Zhejiang, China Brand Name:Julante Model Number:YE2 Type:Induction Motor Frequency:50HZ Phase:Three-phase Protect Feature:Totally Enclosed AC Voltage:380V Efficiency:IE 2 |
Cooling type:IC0141 Protection class:IP54/IP55 Apply machines and equipments:drilling machines ,blowers , pumps and so on Duty:S1 Brand:Julante and OEM Color:blue /yellow/red/customize Altitude:not exceeding 1000m Ambitent temperature:-15℃≤0≤40℃ Insulation class:B/F Certification:CCC CE ISO9001 |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Carton or plywood cases
Lead time:
| Quantity(pieces) | 1 - 30 | >30 |
| Lead time (days) | 15 | To be negotiated |
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.37KW-7.5KW
|
|
3
|
Voltage
|
110/220
|
|
4
|
Speed
|
1500-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Single Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
YL/YC/YCL/YY/JY
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
What is the relationship between the power and speed of the motor product?
The power of the motor product has the following relations with the speed:
1. The power is proportional to the speed, that is, the higher the power, the higher the speed.
2. Voltage changes will lead to changes in power and speed.
3. The size and type of the load have a direct impact on the power and speed. A large load will lead to a decrease in power and speed.
4. The internal structure and design parameters of the motor will also affect the power and speed, and the relationship between the power and speed depends on the internal characteristics of the motor.
5. For different types of motors, the relationship between power and speed may be different. For example, DC motor and AC motor, the relationship between power and speed may be slightly different.
To sum up, the relationship between power and speed depends on a variety of factors, which need comprehensive consideration to determine
Contact Us
FAQ:
How is the output voltage of the motor product calculated?
The output voltage calculation needs to be done according to the specific motor product type and parameters. Generally speaking, the output voltage of a DC motor can be calculated by the following formula:
Output voltage (V) = motor rated voltage (V) × motor speed (r/min) ÷ 60
The output voltage of AC motor needs to take into account the rated voltage, number of phases, power and other parameters of the motor, which can be generally referred to the technical data manual of the motor product or ask the manufacturer. At the same time, the output voltage is also affected by the motor's load condition and other factors, so it needs to be adjusted and monitored according to the actual situation when it is used.
