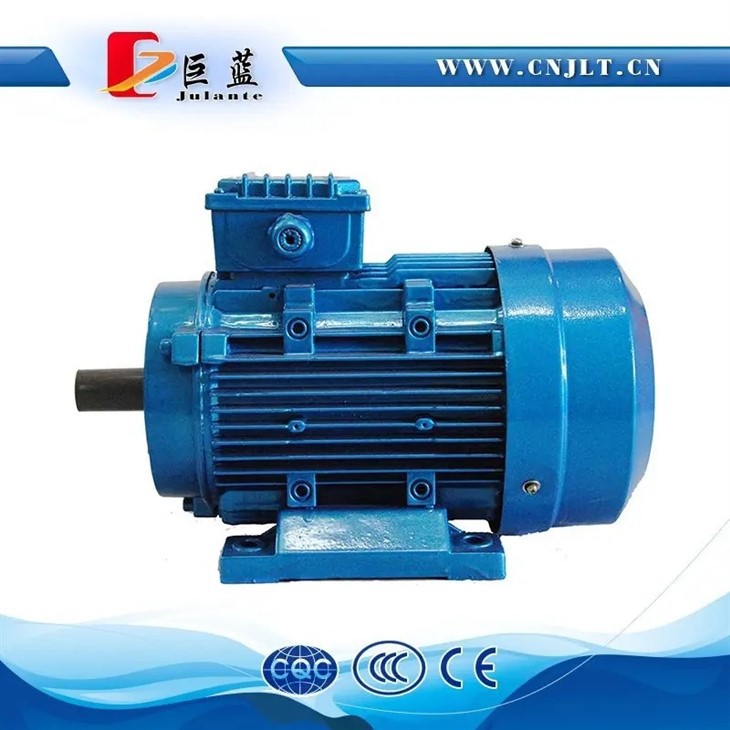

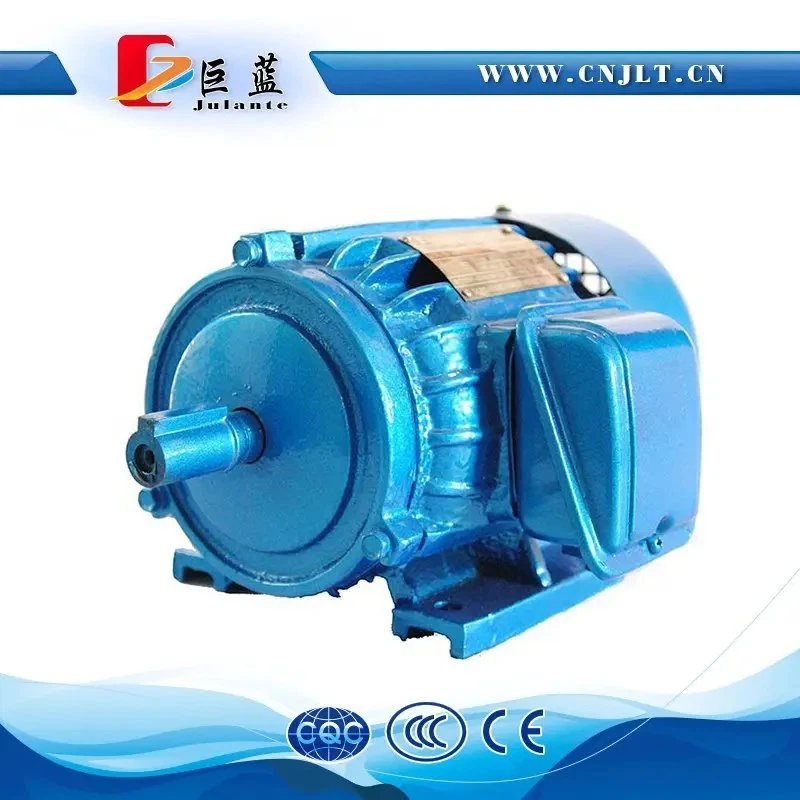

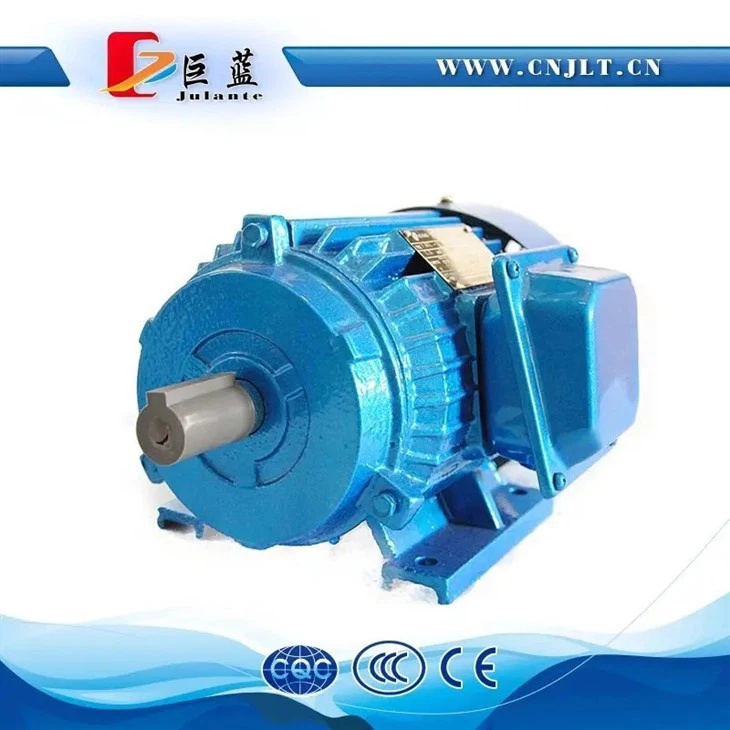

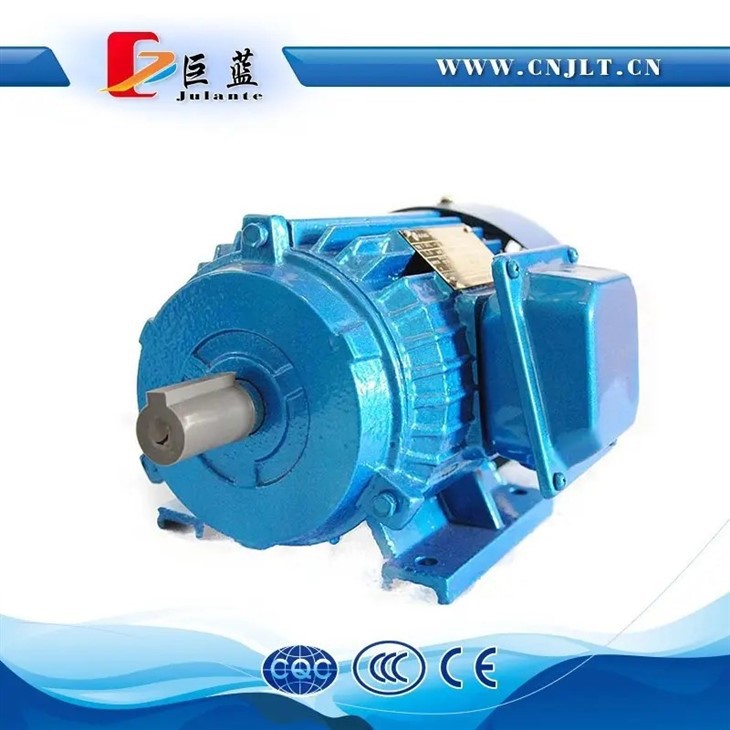

25kw 3 Phase Induction Motor

Essential details

Place of Origin:Zhejiang, China Brand Name:Julante Model Number:Y2-280S-2 Output Power:75kw Type:Asynchronous Motor Frequency:50hz/60hz Phase:Three-phase Protect Feature:Totally Enclosed AC Voltage:460 / 480 V Efficiency:IE 2

Certification:CCC, ce, ISO9001 Produce Name:electric motor 25kw 3 phase induction motor Pole:2P Wire:Copper wire Insulation of class:Class B / ClassF Protection Class:IP44/IP54 Installation:B3/B5/B14 Material of body:Cast iron or Aluminum are avalible Colour:Bule/ Grey, customized is also avaliable Size:400*313*265mm



Supply Ability
Supply Ability:5000 Piece/Pieces per Month



Packaging & delivery
Packaging Details:75kw 100hp electric motor
1. Packaged in strong carton
2. Individual packged size:400*313*265mm
Port:Ningbo or Shanghai
Lead time:20days after received deposit



Brief Induction

Y2 series motors are totally enclosed fan cooled(TEFC). suqirrel cage three phase induction motors,developed with new technique. They are renewal and upgrading products of Yseries. The mouting dimension is fully comformed with IEC standard,

The motors have merits of beautiful modeling,compacts structure,low noise,high efficency,large staring torque,easy serving,etc,The motors are adopted with F class insulation and designed with assessing method for insulation practice, it enhances greatly motor's safety and reliablity. These motors have reached an international advanced level Y2 series motors can be widely used in various machines and equipment, such as drilling machines,blowers,pumps,compressors,transporters, agricultural and food processing machines



Operating Condition

Ambient tempertature: -15°c≤0≤40°c

Duty/Rating: Continous(S1)

Altitude: Not exceeding 1000meters

Insultation calss:Class B/ Class F

Rated voltage:380V±5%

Protection class:The main class body of motor IP54

Rated frequency:50HZ/60HZ

The terminal box IP55

Connection:Y srating-Connection for 3kw and below

Cooling type: IC0141

Δ Date-Connection for 3kw or more



Technical data

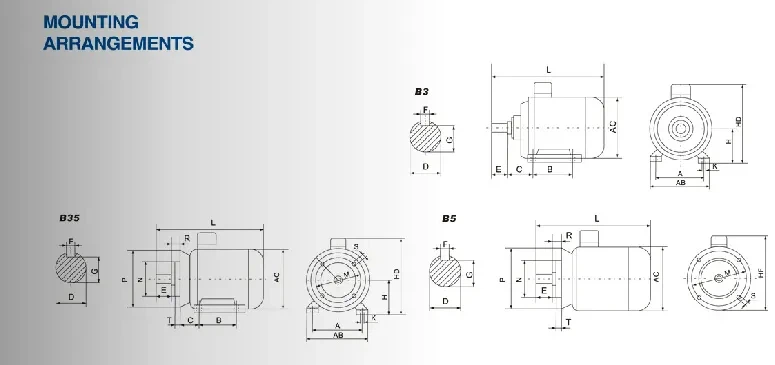

 1.Mouting installation



Power avaliable

Model	Outpower		Speed	Size
	KW	HP	r/min	mm
380V 50HZ 2POLE
Y2-80M1-2	0.75	1	2825	290*233*175
Y2-80M2-2	1.10	1.5	2825	290*233*175
Y2-90S-2	1.5	2	2840	315*250*195
Y2-90L-2	2.2	3	2840	340*250*195
Y2-100L-2	3	4	2880	380*283*245
Y2-112M-2	4	5.5	2890	400*313*265
Y2-132S1-2	5.5	7.5	2900	475*350*315
Y2-132S2-2	7.5	10	2900	475*350*315
Y2-160M1-2	11	15	2930	605*430*385
Y2-160M2-2	15	20	2930	605*430*385
Y2-160L-2	18.5	25	2930	650*430*385
Y2-180M-2	22	30	2940	670*462*430
Y2-200L1-2	30	40	2950	775*512*475
Y2-200L2-2	37	50	2950	775*512*475
Y2-225M-2	45	60	2970	820*562*530
Y2-280S-2	75	100	2970	1000*685*640
Y2-280M-2	90	125	2970	1050*685*640
Y2-315S-2	110	150	2980	1240*948*865
Y2-315M-2	132	180	2980	1310*948*865
Y2-315L1-2	160	215	2980	1310*948*865
Y2-315L2-2	200	270	2980	1310*948*865
Y2-355M1-2	220	300	2980	1500*1020*1010
Y2-355M2-2	250	340	2980	1530*1020*1010
Y2-355L1-2	280	380	2980	1530*1020*1010
Y2-355L2-2	315	420	2980	1530*1020*1010



Model	Outpower		Speed	Size
	KW	HP	r/min	mm
380V 50HZ 4POLE
Y2-80M1-4	0.55	0.75	1390	290*233*175
Y2-80M2-4	0.75	1	1390	290*233*175
Y2-90S-4	1.1	1.5	1390	315*250*195
Y2-90L-4	1.5	2	1400	340*250*195
Y2-100L1-4	2.2	3	1430	380*283*245
Y2-100L2-4	3	4	1430	380*283*245
Y2-112M-4	4	5.5	1440	400*313*265
Y2-132S-4	5.5	7.5	1440	475*350*315
Y2-132M-4	7.5	10	1440	515*350*315
Y2-160M-4	11	15	1460	605*430*385
Y2-160L-4	15	20	1460	650*430*385
Y2-180M-4	18.5	25	1470	670*462*430
Y2-180L-4	22	30	1470	710*462*430
Y2-200L-4	30	40	1470	775*512*475
Y2-225S-4	37	50	1480	820*562*530
Y2-225M-4	45	60	1480	845*562*530
Y2-250M-4	55	75	1480	930*630*575
Y2-280S-4	75	100	1480	1000*685*640
Y2-280M-4	90	125	1480	1050*685*640
Y2-315S-4	110	150	1480	1310*948*865
Y2-315M-4	132	180	1490	1340*948*865
Y2-315L1-4	160	215	1490	1340*948*865
Y2-315L2-4	200	270	1490	1340*948*865
Y2-355M1-4	220	300	1490	1500*1020*1010
Y2-355M3-4	250	340	1490	1530*1020*1010



Model	Outpower		Speed	Size
	KW	HP	r/min	mm
380V 50HZ 6POLE
Y2-80M-6	0.37	0.5	900	290*233*175
Y2-80M1-6	0.55	0.75	900	290*233*175
Y2-90S-6	0.75	1	910	315*250*195
Y2-90L-6	1.10	1.5	910	340*250*195
Y2-100L-6	1.50	2	940	380*283*245
Y2-112M-6	2.2	3	940	400*313*265
Y2-132S-6	3	4	960	475*350*315
Y2-132M1-6	4	5.5	960	475*350*315
Y2-132M2-6	5.5	7.5	960	515*350*315
Y2-160M-6	7.5	10	970	605*430*385
Y2-160L-6	11	15	970	650*430*385
Y2-180L-6	15	20	970	710*462*430
Y2-200L1-6	18.50	25	970	775*512*475
Y2-200L2-6	22	30	970	775*512*475
Y2-225M-6	30	40	980	845*562*530
Y2-250M-6	37	50	980	930*630*575
Y2-280S-6	45	60	980	1000*685*640
Y2-280M-6	55	75	980	1050*685*640
Y2-315S-6	75	100	990	1270*948*965
Y2-315M-6	90	125	990	1340*948*865
Y2-315L1-6	110	150	990	1340*948*865
Y2-315L2-6	132	180	990	1340*948*865
Y2-355M1-6	160	215	990	1500*1020*1010
Y2-355M2-6	185	250	990	1500*1020*1010
Y2-355M4-6	200	270	990	1530*1020*1010



Workshop





Packaging & Shipping

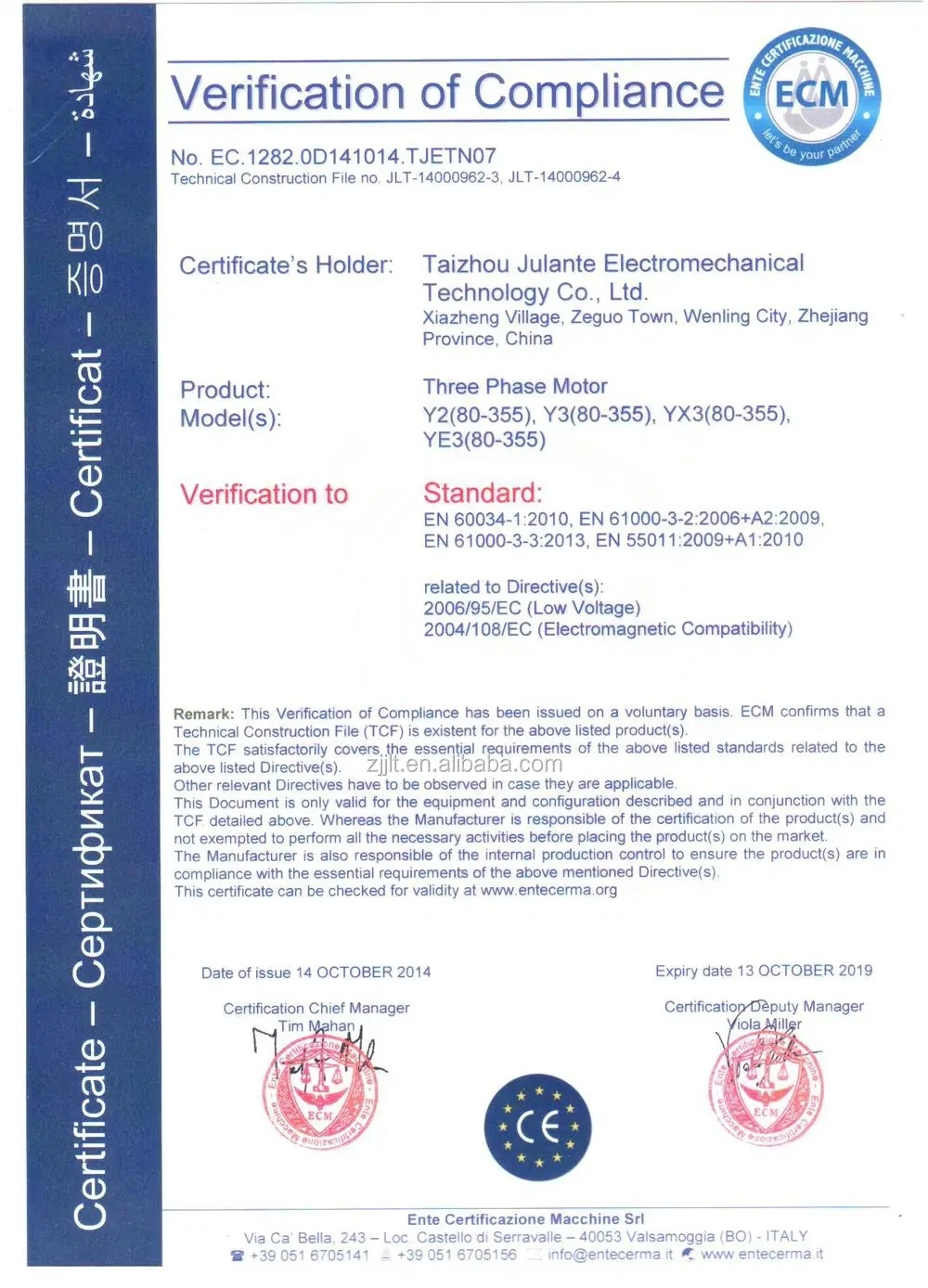

Certifications





Contact
