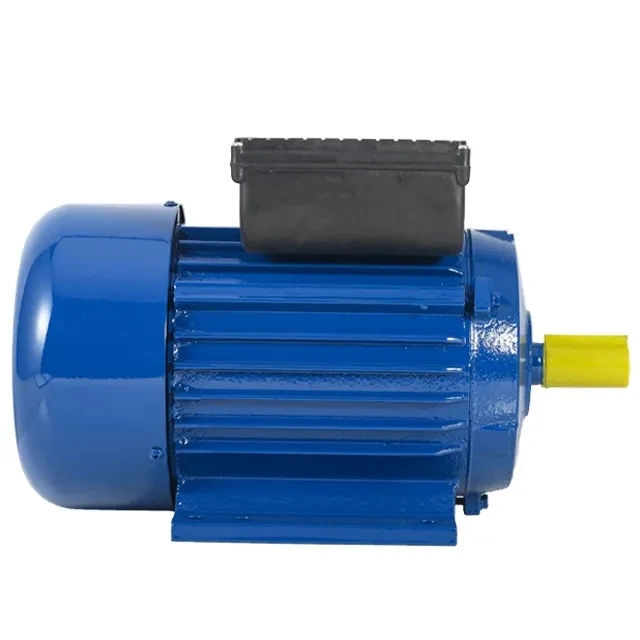

YL Single Phase AC Electric Motor
Certification:CCC
Product Name:Induction Motor
Duty:Continuous Running
Insulation Class:B\F
Features
Essential details
| Warranty:3months-1year Place of Origin:Zhejiang, China Brand Name:Julante Model Number:YL Type:Induction Motor Frequency:50hz Phase:Single-phase Protect Feature:Totally Enclosed AC Voltage:208-230 / 240 V Efficiency:IE 2 |
Certification:CCC Product Name:Induction Motor Duty:Continuous Running Insulation Class:B\F Protection class:IP54/IP55 Cooling method:ICO141 Voltage:Customised Color:Customised Logo:Customised OEM&ODM:Yes |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Bubbles, carton and plywood
Port:ningbo shanghai guangzhou yiwu
Lead time:
| Quantity(pieces) | 1 - 10 | >10 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
Single phase starting capacity induction motor, it is suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.
FEATURES AT A GLANCE
Single Phase Electric Motors power range cover 0.25HP-10HP, Single-phase motor refers to an asynchronous motor that is powered by a 220V AC single-phase power supply. Because 220V power supply is very convenient and economical, and household life uses 220V, single-phase motors are not only used in large quantities in production, but also closely related to people's daily lives. In production, it is used in mini pumps, refiners, threshers, shredders, woodworking machinery, medical equipment, etc. In life, it is used in electric fans, hair dryers, exhaust fans, washing machines, refrigerators, etc.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.37KW-7.5KW
|
|
3
|
Voltage
|
110/220
|
|
4
|
Speed
|
1500-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Single Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
YL/YC/YCL/YY/JY
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
How to calculate the load capacity of motor products?
The carrying capacity of a motor product is usually expressed by two parameters: rated power and rated speed. Rated power refers to the maximum power that a motor can output at rated speed. The unit is kilowatts (kW) or horsepower (HP). Rated speed refers to the nominal speed of the motor at rated voltage and frequency.
When using the motor, it is necessary to confirm whether the working state of the motor is consistent with the rated parameters. If the load is too large, the motor will not reach the rated speed and power, and may overheat, damage or cause safety accidents. Therefore, to choose suitable motor products for application, and adjust according to the load situation.
