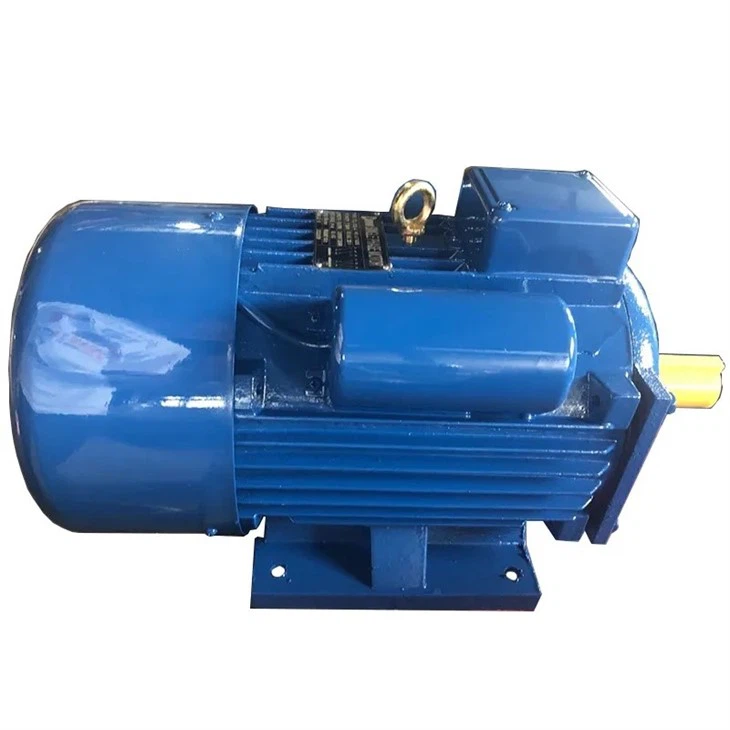

20v Ac Single Phase Asynchronous Induction Motor
Type:Induction Motor
Frequency:50HZ
Phase:Three-phase
Protect Feature:Totally Enclosed
Features
Essential details
| Warranty:3months-1year Place of Origin:Zhejiang, China Brand Name:Julante Model Number:YE2 Type:Induction Motor Frequency:50HZ Phase:Three-phase Protect Feature:Totally Enclosed AC Voltage:380V Efficiency:IE 2 |
Cooling type:IC0141 Protection class:IP54/IP55 Apply machines and equipments:drilling machines ,blowers , pumps and so on Duty:S1 Brand:Julante and OEM Color:blue /yellow/red/customize Altitude:not exceeding 1000m Ambitent temperature:-15℃≤0≤40℃ Insulation class:B/F Certification:CCC CE |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Bubbles, carton and plywood
Port:ningbo shanghai guangzhou yiwu
Lead time:
| Quantity(pieces) | 1 - 30 | >30 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
Single phase starting capacity induction motor, it is suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.
FEATURES AT A GLANCE
Single Phase Electric Motors power range cover 0.25HP-10HP, Single-phase motor refers to an asynchronous motor that is powered by a 220V AC single-phase power supply. Because 220V power supply is very convenient and economical, and household life uses 220V, single-phase motors are not only used in large quantities in production, but also closely related to people's daily lives. In production, it is used in mini pumps, refiners, threshers, shredders, woodworking machinery, medical equipment, etc. In life, it is used in electric fans, hair dryers, exhaust fans, washing machines, refrigerators, etc.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.37KW-7.5KW
|
|
3
|
Voltage
|
110/220
|
|
4
|
Speed
|
1500-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Single Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
YL/YC/YCL/YY/JY
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
How to solve the harmonic pollution problem of motor products?
1. What is the harmonic pollution problem of the motor?
A: In the working process of the motor, its current and voltage waveform will produce harmonics of various frequencies, these harmonics will have a certain degree of interference and influence on the power grid and other electrical equipment, known as the harmonic pollution problem of the motor.
2. What are the effects of harmonic pollution?
A: Harmonic pollution will lead to the voltage and current deformation of the grid, so that the normal work of electrical equipment is disturbed, and even lead to the damage of equipment in serious cases. At the same time, harmonics can also cause additional power consumption and increase energy consumption, resulting in energy waste.
3. How to solve the harmonic pollution problem of the motor?
Answer: To solve the harmonic pollution problem of the motor, we need to start from the following aspects:
- Choose the right type of motor: When choosing the motor, it is preferred to choose the low harmonic motor, that is, the harmonic suppressed motor.
- Installation of harmonic filters: By adding harmonic filters to the input or output circuits of the motor, the output harmonics of the motor can be effectively reduced.
- Harmonic suppression on the power grid: Devices such as harmonic suppressors can be installed on the power grid to reduce the sensitivity of the power grid to harmonics and reduce the transmission and reflection of harmonics.
- Strengthen the maintenance of electrical equipment: timely cleaning and replacement of expired electrical equipment to ensure the normal operation of equipment and reduce the possibility of harmonic pollution.
4. Which industries are more prone to harmonic pollution problems of motors?
A: Generally speaking, large industrial enterprises, petrochemical, metallurgy, aerospace and other industries are more prone to the problem of harmonic motor pollution, because these industries use more motors, larger power, and complex working environment, easy to produce harmonic interference.
ABOUT US
Taizhou Julante Electromechanical Technology Co.,LTD is a professional manufacturer of electric motor products.Have 22 years old in this business . Specialized in the production of three phase ac electric motor ,single phase ac electric motor ,internal concrete vibrator , external concrete vibrator ,air compressor ,water pump motor , Cutting machine, welding machine, grinder,ect .
