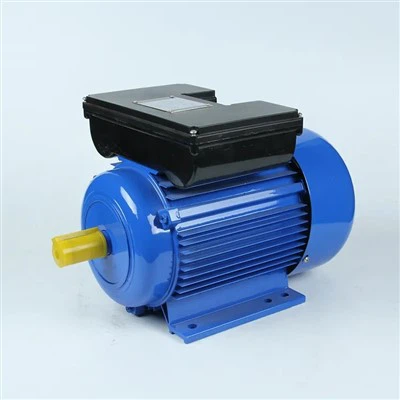

Single Phase 3 Hp Motor
Phase:Single-phase
Protect Feature:Totally Enclosed
AC Voltage:220v /240v
Efficiency:IE 1
Features
Essential details
| Warranty:3months-1year Place of Origin:Zhejiang, China Brand Name:1.5kw 2hp single phase motor Model Number:YC100L2-4 Type:Induction Motor Frequency:50HZ Phase:Single-phase Protect Feature:Totally Enclosed AC Voltage:220v /240v Efficiency:IE 1 |
type:YC100L1-4 body material:cast iron body /aluminum body 1.5kw 2hp yc100l2-4 single phase motor ambient temperature:-15℃≤0≤40℃ altitude:not exceeding 1000 meter rated voltage:220v ±5% protection type:IP54/IP44 cooling type:IC0141 insulation class:B/F rated frequency:50HZ /60HZ mounting way:B3 B5 B14 B35 B34 |
Supply Ability
Supply Ability:10000 Piece/Pieces per Month electric motor 35kw
Packaging & delivery
Packaging Details:Bubbles, carton and plywood
Port:ningbo shanghai guangzhou yiwu
Lead time:
| Quantity(pieces) | 1 - 10 | >10 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
Single phase starting capacity induction motor, it is suitable for small size machine tools and water pumps, especially suitable for family workshops where only single-phase power be supplied. This series motors are designed with the latest technology, manufactured with the quality materials, have following features: good performance, safe and reliable operation, nice appearance, convenient maintenance, meet the IEC standards.
FEATURES AT A GLANCE
Single Phase Electric Motors power range cover 0.25HP-10HP, Single-phase motor refers to an asynchronous motor that is powered by a 220V AC single-phase power supply. Because 220V power supply is very convenient and economical, and household life uses 220V, single-phase motors are not only used in large quantities in production, but also closely related to people's daily lives. In production, it is used in mini pumps, refiners, threshers, shredders, woodworking machinery, medical equipment, etc. In life, it is used in electric fans, hair dryers, exhaust fans, washing machines, refrigerators, etc.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.37KW-7.5KW
|
|
3
|
Voltage
|
110/220
|
|
4
|
Speed
|
1500-3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Single Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
YL/YC/YCL/YY/JY
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
What are the motor rotor types of motor products?
There are many types of motor rotor, according to different application fields and special requirements, you can choose different models. Some common motor rotor models are as follows:
1. Static rotor motor: there is no mechanical contact between the rotor and the stator, the rotor is fixed on the shaft, mainly used in high-speed operation and precision machinery fields.
2. Dynamic rotor motor: there is mechanical contact between the rotor and the stator, the rotor is a part of dynamic operation, mainly used in low speed and high torque occasions.
3. Dc motor: The rotor is powered by the power supply, and through the brush and collector ring contact with the stator, mainly used in low power and speed control occasions.
4. Conventional induction motor: the rotor is driven by the torque generated by electromagnetic induction in the stator, which is mainly used in industrial fields, such as water pumps, exhaust fans, etc.
5 synchronous motor: rotor speed and coil input voltage frequency synchronization, mainly used in precision position control and other fields.
6. Stepper motor: the electrical pulse is input to the stator of the motor, so that the rotor rotates according to a certain step, mainly used in the field of mechanical transmission and position control.
7. Magnetic levitation motor: The rotor is suspended in the air through the electromagnetic force, and can rotate freely, mainly used in the field of high-speed machinery and precision instruments.
