Electric Hopper Vibrator
AC Voltage:380v
Efficiency:IE 2
After Warranty Service:Video technical support
Local Service Location:None
Features
Essential details
| Warranty:1 Year Place of Origin:Zhejiang, China Brand Name:JULANTE Model Number:ZW Type:Induction Motor Frequency:50hz Phase:Three-phase |
Protect Feature:Totally Enclosed AC Voltage:380v Efficiency:IE 2 After Warranty Service:Video technical support Local Service Location:None After-sales Service Provided:Video technical support |
Packaging & delivery
Lead time:
| Quantity(pieces) | 1 - 1 | >1 |
| Lead time (days) | 15 | To be negotiated |
Product Overview
1.ZW plate vibrato surface type concrete vibrator is an essential tool for concrete vibrator, which is widely used in modern construction engineering dense concrete vibrators work. 2.It can be used for the concrete foundation level and various parts of the surface of the concrete structure of the work of the tap. 3.Also be installed in a variety of vibration shaker and other equipment and used as a source of vibration.
FEATURES AT A GLANCE
1. It's made by adding two eccentric mass to each of the two end of one-phase, three-phase asynchronous motor armature.
2. It's completely dosed and string, conveninet to be disassembled and repaired. Power wires are made of four-core rubber cable.
3. The shell of the machine is made from aluminum alloy. It has light weight and high efficiency. Two covere are fined by three screws.

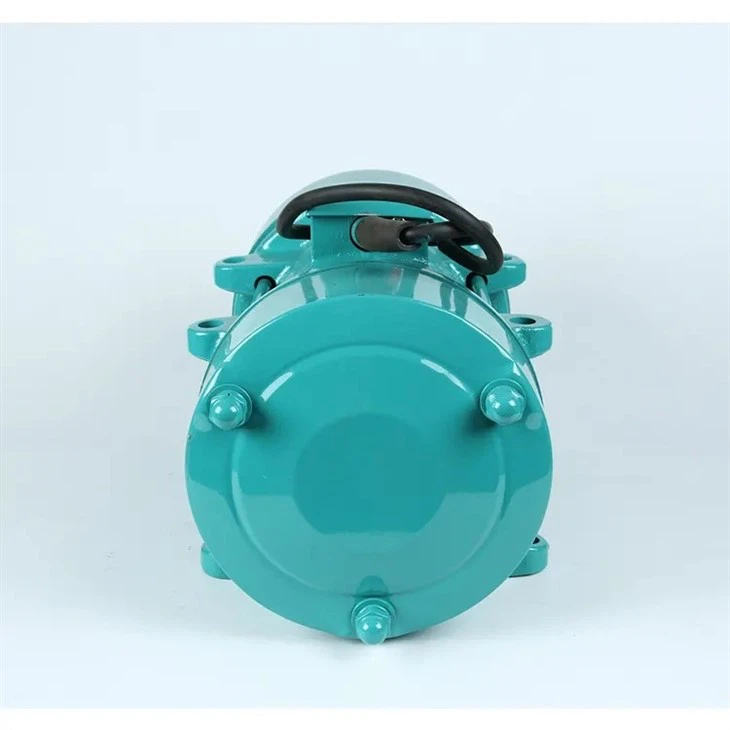

Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
Brand Name
|
Julante
|
|
2
|
Power
|
0.25KW-3KW
|
|
3
|
Voltage
|
220/380V
|
|
4
|
Speed
|
3000R/MIN
|
|
5
|
Wire
|
100% Copper wire
|
|
6
|
Frequency
|
50/60HZ
|
|
7
|
Protection Class
|
IP44/54/55 B/F/H
|
|
8
|
Warranty
|
1Year
|
|
9
|
-Ambient Temperature
|
-15℃≤0≤40℃
|
|
10
|
Phase
|
Single phase Three Phase
|
|
11
|
Application
|
General Machinery
|
|
12
|
Mounting Type
|
B3/B5/B35
|
|
13
|
Duty
|
S1 Continuous
|
|
14
|
Place of origin
|
Zhejiang,China
|
|
15
|
Protect Feature
|
Toally Enclosed
|
|
16
|
Model Number
|
ZN
|
|
17
|
Efficiency
|
IE2 IE3
|
|
18
|
Certification
|
CE CCC ISO9001
|
|
19
|
Altitude
|
Not exceed 1000m
|
|
20
|
Standard
|
Confirm to IEC international standard
|
PRODUCT CONFIGURATION
Rotor
Stator
Motor Casing
Transport
FAQ
What is the shape structure of the motor product?
1. What are the dimensions of the motor?
A: The outline size of the motor includes diameter, length, height, width and other parameters. Its size and shape will vary according to different motor types, such as DC motor, AC motor, stepper motor, etc.
2. What are the material and color of the motor shell?
A: The shell material of the motor is usually made of plastic, aluminum alloy, copper and other materials, and the color is usually black, silver, gold and other basic colors. In addition, there are also some motor shell with bright color coating, coating and other treatment methods to improve the beauty and durability.
3. What are the wiring modes of the motor?
A: The connection mode of the motor includes the connection mode of the conductor and the connection mode of the terminal box. Common wire connection methods include plug type, welding type, pin type, etc.; Common terminal box connection modes include fixed type, toggle type, screw type, etc. The choice of connection mode is usually determined according to the specific use and circuit requirements.
4. What are the accessories of the motor?
A: The accessories of the motor include bracket, fan, radiator, shock pad and so on. These accessories can improve the stability, life and reliability of the motor, especially in the high temperature, high load and other harsh environment, the importance of these accessories is more prominent.
5. What are the protection levels of the motor?
A: The protection grade of the motor refers to the external protection ability of the motor. Common Protection levels include IP65, IP66, and IP67. IP indicates Ingress Protection, which is the protection level. The number indicates the specific protection level. The selection of protection grade should be determined according to the environmental conditions and requirements of the motor application.
