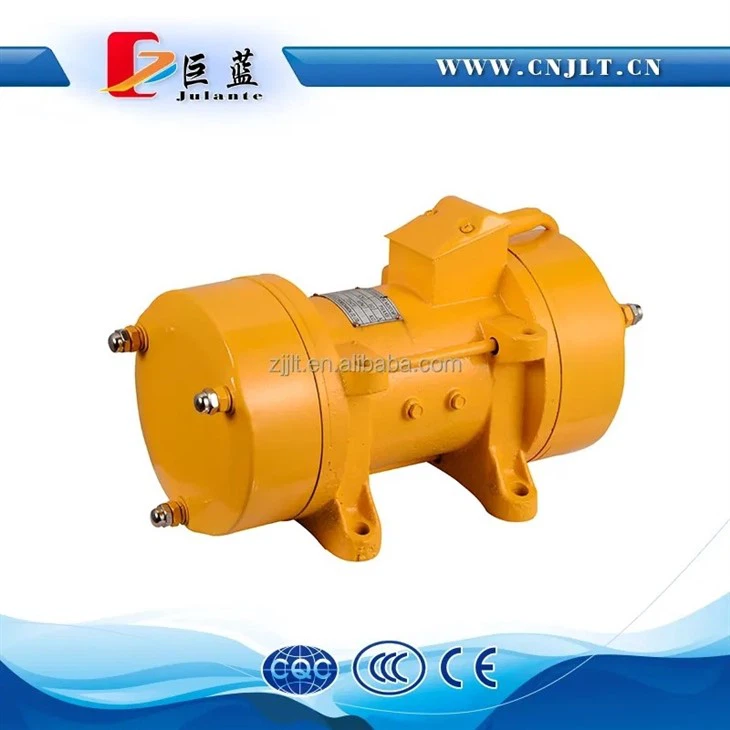

Zw-14 Concrete Vibrator

Name: China Customized Zw-14 Concrete Vibrator Manufacturers Suppliers Factory - Made in China
Brand: Julante
SKU: 204824083

Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020

Send Inquiry

Features

Essential details

Applicable Industries:Other
Showroom Location:None
Video outgoing-inspection:Provided
Machinery Test Report:Provided
Marketing Type:New Product 2020
Warranty of core components:1 Year
Core Components:Motor
Condition:New
Place of Origin:Zhejiang, China
Brand Name:Julante
Type:External
Drive Mode:Electric Vibrator
Frequency:2850

Length of Flexible Shaft:4m,6m,8m
Voltage:380V
Weight:7 kg
Dimension(L*W*H):49*25*29
Warranty:1 Year
UNIQUE SELLING POINT:High operating efficiency
After-sales Service Provided:Overseas service center available
Produce Name:550w electric plate concrete vibrator
Colour:Bule/ Grey, customized is also avaliable
Vibrator size:375*195*220mm
Model:ZW-14-3KW 4HP
Certification:CE,CCC,ISO9001

Supply Ability
Supply Ability:5000 Piece/Pieces per Month

Packaging & delivery
Packaging Details
electric plate concrete vibrator
1. Packaged in strong carton
2. Individual packged size:420*230*240mm
Port:Ningbo or Shanghai

HTB1ZZ7DLXXXXXXJXFXXq6xXFXXX1webp

HTB10u3JLXXXXXamXpXXq6xXFXXX5webp

HTB1SNnNGVXXXXaWXXXXq6xXFXXXfwebp

HTB1ySrDGVXXXXcwaXXXq6xXFXXXwwebp

Brief Induction

concrete vibrator is used to consolidate cement and remove all the trapped air bubbles to give you the toughest cement possible, widely used in construction, transportation, water conservancy, port, mine and metallurgy, etc. It can be adapted to every type of application, vibrator heads and shafts can be easily combined and rapidly exchanged to match the right equipment to the job.

Technical data

Power avaliable:

Model	Power(kw)	Voltage(v)	Packing Dimension	Weight
ZW-14	3kw	380v	490250290	45kg

Model	Vibration cycle(RPM)	Sharp forces(KGF)	Power(KW)
ZW-3.5	2840	350	0.75
ZW-5	2840/1400	500	1.1
ZW-7	2840/1400	700	1.5
ZW-10	2840/960	980	2.2
ZW-14	2840/960	1380	3

Packaging & Shipping

HTB13gHIGVXXXXbXFXXq6xXFXXXiwebp

HTB1B9DJGVXXXXXGXFXXq6xXFXXXFwebp

HTB1g95gGVXXXXXuapXXq6xXFXXXzwebp

HTB1dDjPGVXXXXXDapXXq6xXFXXXcwebp

Base Plate for your selection

Power	Base Plate Mouting Size	Overall Dimension	Weight
0.75kw	135mm*110mm	360*285mm	1.8KG
1.1kw 1.5kw	165mm*140mm	420*330mm	4.5KG
2.2kw	185mm*160mm	540*370mm	6.3KG
3kw	200mm*165mm	600*420mm	7.5KG
